Step 1: Download the Pre-Built GNS3 Virtual Machine
Before we dive into setting up GNS3, let's start by downloading the GNS3 Virtual Machine (VM). This VM comes pre-configured with GNS3, making the setup process much smoother.
You have two download options for the GNS3 VM. In this step, we'll explain both choices, so you can pick the one that fits your needs perfectly.
Option 1: Download via GNS3 Website (Recommended)
- Go to https://gns3.com/software/download-vm.
- On the download page, select the Virtualbox option.
Option 2: Download from GitHub (Alternative)

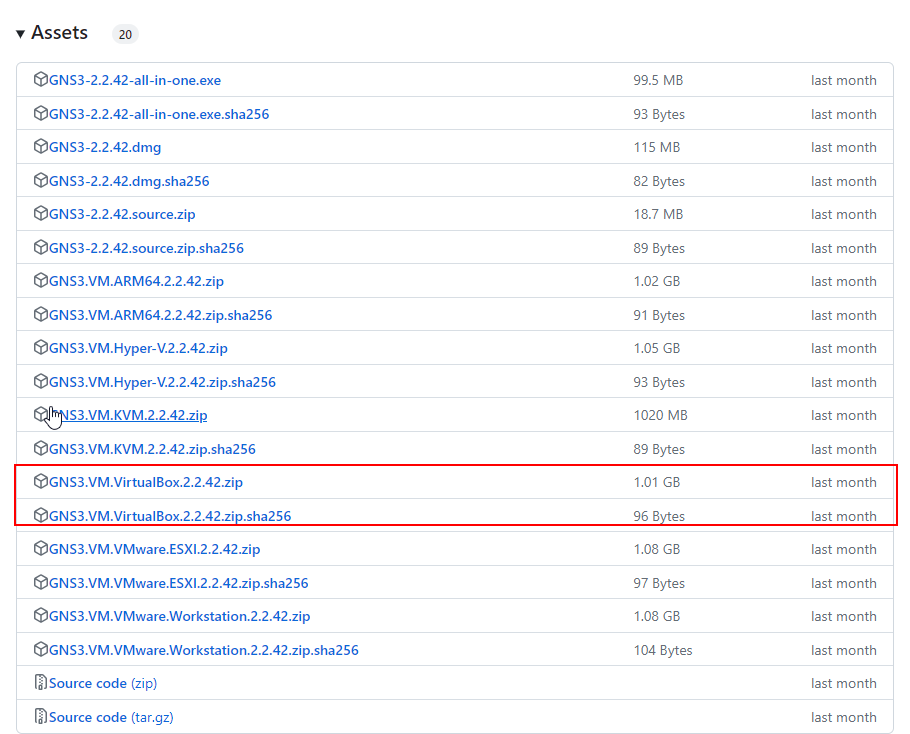

- Visit the GNS3 release page on GitHub at https://github.com/GNS3/gns3-gui/releases.
- On the release page, you have the option to download the GNS3 application, various versions of the GNS3 VM, and even access the source code.
Once you've downloaded the GNS3 VM, you'll get a .zip archive. It's crucial to unzip or extract its contents before proceeding to import it into your VirtualBox.
Step 2: Import the Virtual Machine into VirtualBox
- Launch VirtualBox on your computer.

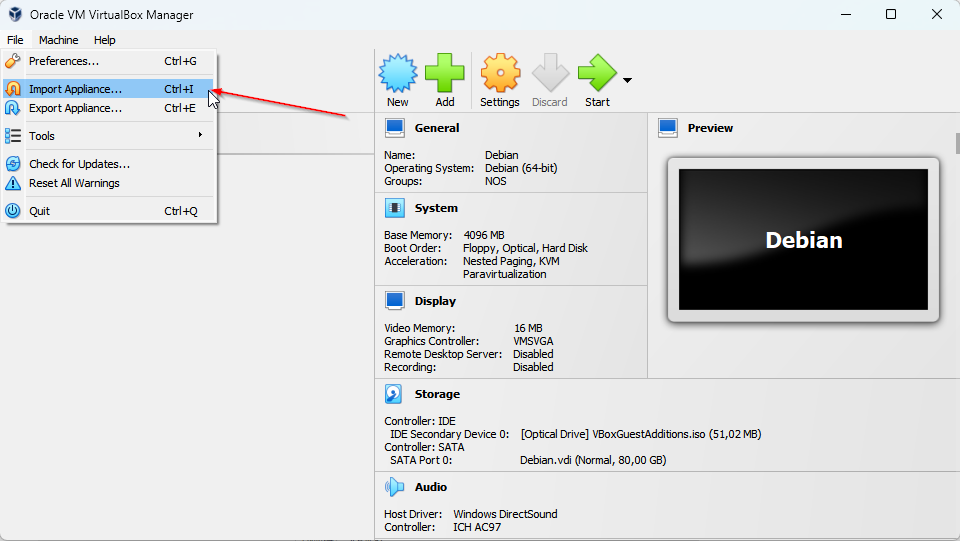

- In VirtualBox, navigate to the File menu and select Import Appliance.
- In the dialog box that appears, specify the path to the downloaded virtual machine file (the GNS3 VM that you previously downloaded and extracted). After selecting the file, click Open to proceed with the import process.
Step 3: Configure the Virtual Machine Parameters
Once you've imported the GNS3 VM, it's crucial to configure its parameters to guarantee optimal performance for your network simulations.

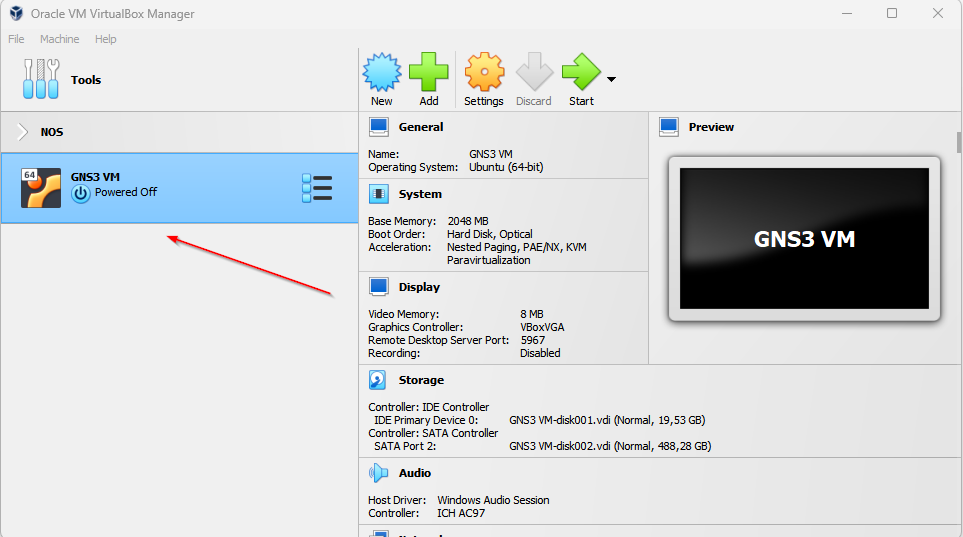

- In the VirtualBox Manager, select the imported GNS3 VM from the list on the left-hand side.

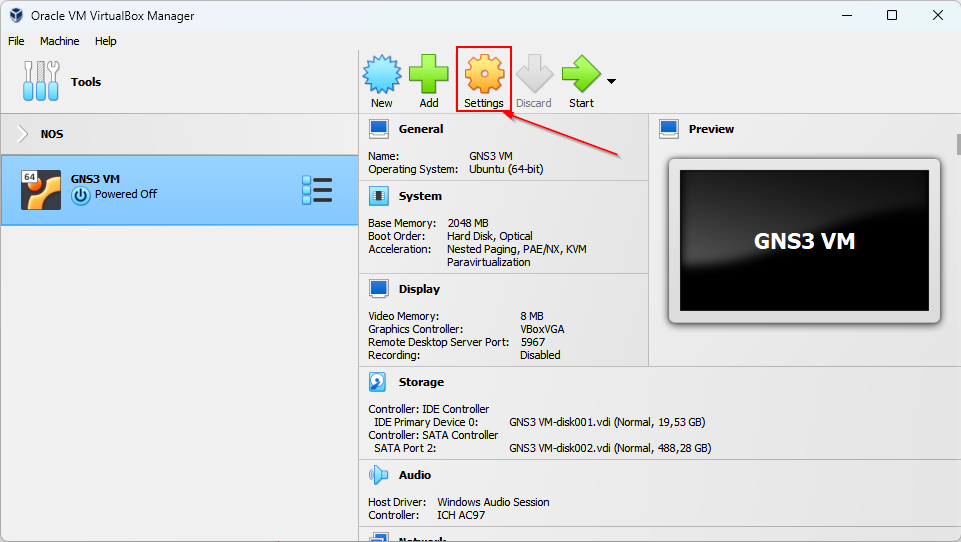

- Click on the Settings button in the VirtualBox toolbar to access the virtual machine's settings.
- In the settings window, make sure to allocate the recommended amount of RAM and CPU cores according to the optimal hardware requirements stated in the introduction.

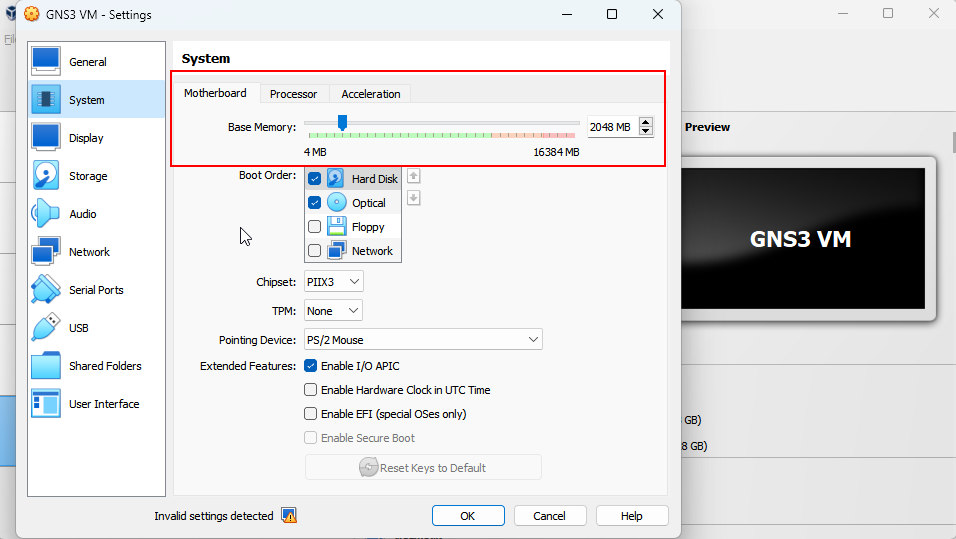

- Navigate to the System category and then in the Motherboard tab to allocate the recommended amount of RAM.

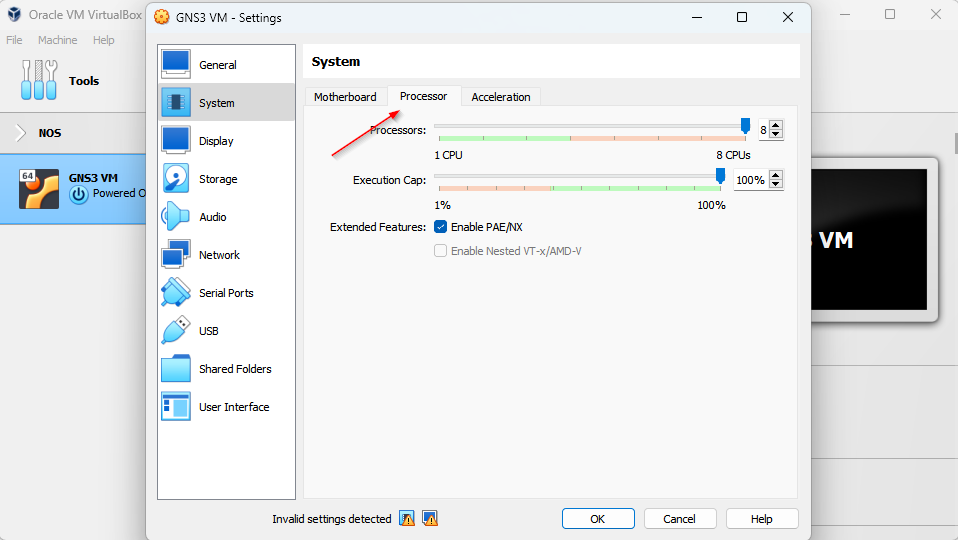

- Navigate to the System category and then in the Processor tab to allocate the recommended amount of CPU cores.
- Navigate to the System category and then in the Motherboard tab to allocate the recommended amount of RAM.
- In the settings window, navigate to the Network category on the left-hand side. Under the Adapter 1 tab, ensure that Enable Network Adapter is checked. In the Attached to dropdown menu, select the Bridged Adapter and then you may need to specify the network interface to bridge to. Use the dropdown menu next to Name to choose the appropriate network interface if it's not already selected. Once you've configured the network settings to your preference, click OK to save the changes.
